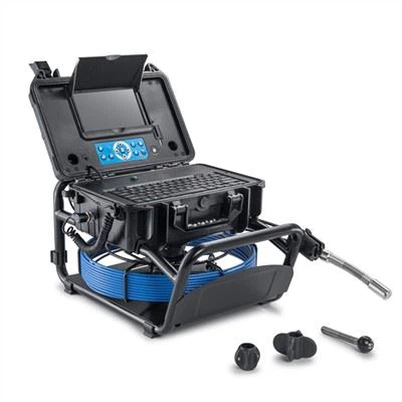

Sewer Pipe Inspection Camera

Using the Sewer Pipe Inspection Camera, plumbers can look inside the pipeline to learn more about pipeline problems and their causes. Given that some plumbing systems are often located below the foundation of your home's concrete, a video camera sewer line inspection is the most effective way to understand plumbing issues that are otherwise invisible.

Pipe cameras come in a range of sizes and resolutions depending on their intended use. High-end cameras offer high-resolution video and images, enabling engineers to inspect pipes in great detail. Some cameras also offer adjustable lighting and zooming capabilities, allowing for accurate inspection of pipes and drains in dark or hard-to-reach areas. Additionally, some pipe cameras offer recording and storage options, allowing for future analysis of the recorded footage.

Plumbers have very limited ability to check for clogged downpipes prior to camera drain inspections. In fact, they usually have to dig a sewer in your yard if they suspect a major problem. Obviously, digging a sewer in your yard is more time-consuming than completing a camera drain inspection, but it's also more damaging to your property and disrupts your schedule. With video technology, your plumber can identify problems without going underground and into your sewer.

Pipe cameras find applications in various fields, including plumbing, building maintenance, oil and gas, and municipal infrastructure. The primary purpose of these cameras is to inspect pipes and drains for damage and obstruction. Within the plumbing industry, pipe cameras are used to identify root infestations, blockages, and cracks in pipes. In building maintenance, these cameras are used for preventive measures to ensure that the pipes are clean and clear of any obstructions. In the oil and gas industry, pipe cameras are used to diagnose potential pipeline defects and maintenance problems.

Pipe cameras offer several advantages, including:

1. Inspection accuracy: Pipe cameras offer high-resolution footage and images, which enable engineers to accurately diagnose the problem.

2. Time-saving: Pipe cameras are a time-saving solution, as they can quickly identify problems in pipes and drains without requiring extensive digging or excavation work.

3. Cost Savings: The quick diagnosis of problems can save money that would otherwise be spent on labor-intensive inspection processes.

In conclusion, pipe cameras are a powerful tool for diagnosing and identifying problems in pipes and drains. Their accuracy, time and cost savings, and ability to avoid excavation and digging work make them an essential asset to various industries. While some considerations and drawbacks exist, their benefits outweigh the cons, making them an essential tool for any professional who requires drain and pipe inspections.

Camera Head

• Camera Size: Φ23mm×51mm (Main body)

• Camera Total Length: 155mm

• Sensor: 1/3” CMOS

• TV-Line: 480 TV-Line

• Pixel: 752H * 582V

• View Angle: 120°

• Front Lens: Sapphire
• Shell Material: 304#Stainless Steel

• Transmitter: 512hz built-in(selectable)

• Power Supply: DC9~15V

DVR Control Unit

• Screen: 7-inch 16:9 Super bright HD color LCD screen

• Resolution: 800x480 RGB

• Mirror and Flip: support image mirror, and flip

• Video Resolution: PAL 720×576 25FPS Max

• Video Encoding: H.264

• Photograph: 720×480/720×576

• Audio Recording：Local sound

• OutPut：TV and Audio output
• Power Supply：DC 6~12V input
• Battery Capacity：7.4V 5200mAh Li-ion Battery



Cable Reel

• 20/30/40M fiberglass rod cable with the on-screen distance counter

• Dia. of push cable: 5.2mm/6.8mm

• Material of Cable: Fiberglass covered by PP

• Operation: Mounted and rotatable in the case

Battery Pack

• Power Input: DC 9V-12V

• Battery Capacity: 7.4V 5200mAh Li-on Battery

• Power Output: 6-12V DC, USB 5V

• Work/Charge time: 6/8 hours

• Max Characters: 384

• Precision of Meter: Counter ±0.5%

• Meter and Feet Switch: Support

• Set Zero: Support

• Power Consume: 40mA @ 12V DC

• Waterproof: P66 (for connection ports panel only)
