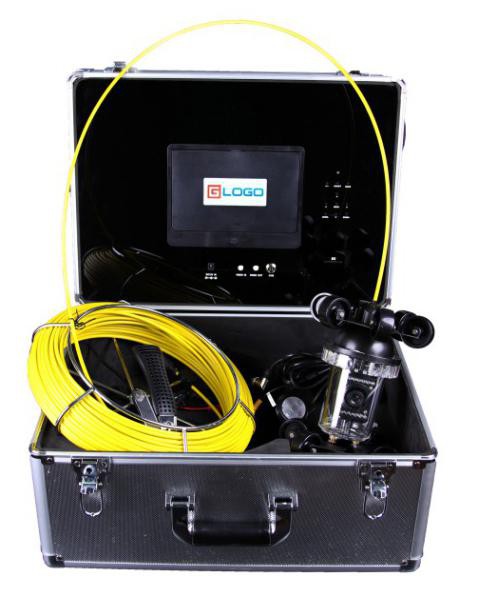

HD Underwater Pipe Inspection Camera
Welcome to buy the best quality and cheap hd underwater pipe inspection camera glf110-7e dvr 20m/30/40/50m for sale from Granfoo Industrial. As one of the leading manufacturers and suppliers of various underwater products, we will offer you reasonable price and excellent services. Model Number:...
Description
HD Underwater Pipe Inspection Camera
Model Number: GLF110-7E DVR 20M/30/40/50M
The HD Underwater Pipe Inspection Camera system uses advanced electronic technology and is completely designed according to the corresponding safety regulations. However, in the process of actual use, it may still be dangerous to the safety of users or third parties, and may also cause damage to the detection system and other equipment. The relevant personnel who operate the system must read the operation manual completely and make sure that they have understood the contents of the manual before operating. The owner of this inspection system is obliged to ensure safety and not to perform dangerous operations.
HD Underwater Pipe Inspection Camera Features and Benefits
high performance
Full HD quality
Digital zoom function
Various adjustable settings
4,000 m depth rating
Monitor specification: | HD Underwater Pipe Inspection Camera |
monitor | 7" Color monitor |
monitor Total Pixels | 800(H) X 480(V) |
monitor power supply | DC 12V |
OSD language | English (10 languages available) |
Adjustable | up, down left, right |
Model type | 16:9 |
Operating Temperature | -20°C-60°C |
case | Portable aluminum case |
Battery | 12V 4000MAH rechargeable Li-ion or Lead-acid Used time: 7 hours |
Charger | Input: AC90-240V , output: DC 12V 1000MA |
SKIDS size | Φ165MM |
Sunshade | Built-in sunshade |
Camera specification: | |
Camera Size | 165mmx200mm |
Camera Case Material | Strong plastic |
Camera Glass Material | Sapphires Glass |
Sensor Size | 1/3 Inch CCD Or CMOS |
Total Pixels | 700 TVL HD |
View Angle | 360° rotative |
Camera Led Light | 18PCS White LEDs or IR lights |
LEDs | Adjustable |
Touch Connector | Special Gold Point Touch Connector |
Cable Length | 20/30/40/50 Meters Optional |
Camerawork Current | 150MA |
Camera Power Supply | DC 12V |
Waterproof | IP68 |
Work Temperature | -10°C-50°C |
Cable wheel | |
Cable size | 320MM(diameter)X110(H) |
Wire material | fiberglass rod |
Fiberglass length | 20M / 30M / 40M / 50M ( optional) |
Fiberglass diameter | 4.8MM |
Fiberglass color | yellow |
DVR specification | |
DVR power supply | 12V |
DVR work current | 200MA |
Storage medium | SD card (max 16G) |
Counter | Digital clock and digital calendar |
DVR Total Pixels | 720X576 (D1) |
Function | Picture snap and movie record |
Movie Format | AV |
Carton size and Gross weight: | 525*295*400mm (20m) 10.0kgs/pc 525*295*400mm (30m) 10.5kgs/pc 525*295*400mm (40m) 11.0kgs/pc 525*295*400mm (50m) 11.5kgs/pc |
