Miniature Tilt Remote Control Device For Sewer Pipe Inspection Camera To Push Endoscope Rod

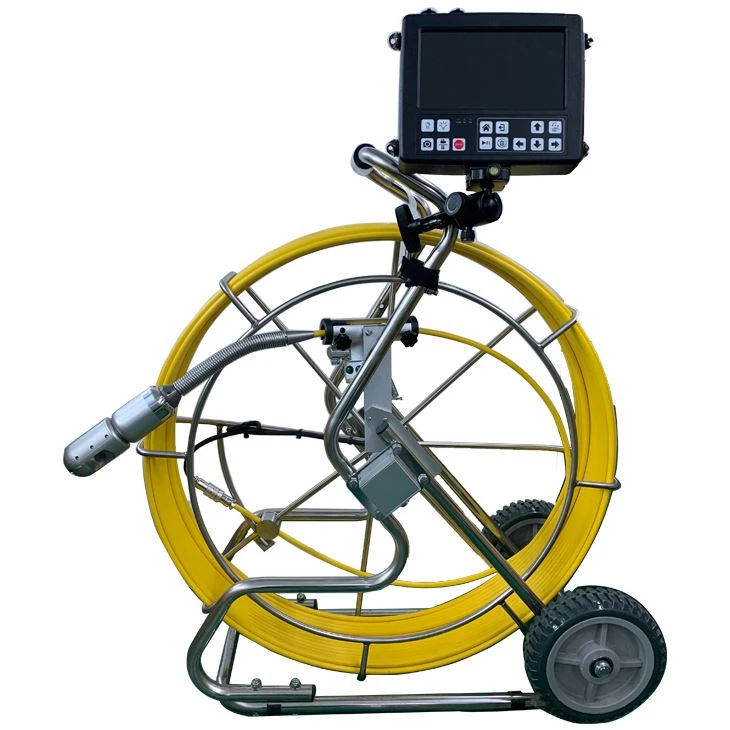

GLF-V8-S9mm is a complete inspection system for pipe inspection, industry sewer inspection. It includes 1pcs 50mm Pan Tilt rotation camera head, 1pcs AHD DVR control unit and 1pcs fiberglass cable reel. The power supply is DC 12V. The control box aslo has built-in 7000mA battery.

1. 360 degree rotation camera head, Pan 360°,Tilt 180° 2. 1/3 CMOS,1.3MP pixel AHD camera head, waterproof up to 10 bars 3. 8 inch IPS lcd screen, 1280*720 resolution 4. DVR control box with audio, video recording and photography function 5. USB wireless bluetooth keyboard to typewrite the words 6. Camera video resolution is 720P 7. Built in 7000mA li-ion battery inside, support uint working more than 4 hours 8. Digital meter counter function, error is less than 1%.

50mm Pan Tilt rotation camera head

* Camera size Ø50mm x 154mm, sensor 1/3" CMOS, 1.3MP pixel

* Waterproof IP68 up to 10 bar

* Rotation: Pan 360°, Tilt 180°

* lens position automatic reset

* Slip coupling for rotation axle

* 6pcs high light LED lighting adjustable

* Lens window sapphire glass

---

DVR control unit

* Audio/video recording & snapshot function

* USB port to connect storage device ( 16G USB flash disk)

* LED brightness adjustable

* On / off microphone to record audio files

* Up, down, left, right botton to control camera rotation

* USB wireless Keyboard real time typewriting

* 7000mA rechargeable Li-ion Battery Pack,support unit working about 4-5hours

* language: English/Chinese/French/Spanish/Polish

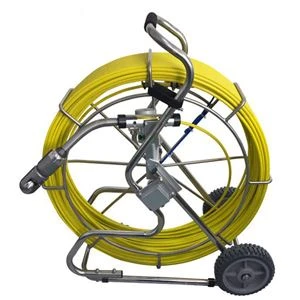

Cable reel

* Fiberglass push rod cable

* Cable diameter ø9mm

* Cable length from 60m-150m option

* Reel size 70 x 28 x 84cm

* Digital meter counter

---

Accessories
