30M/40M Portable Pipeline Inspection System Sewer Camera With Meter Counter And Detector
video
30M/40M Portable Pipeline Inspection System Sewer Camera With Meter Counter And Detector

30M/40M Portable Pipeline Inspection System Sewer Camera With Meter Counter And Detector

1. Unique, professional and compact design.
2. The cable reel is out of the box, easy to clean and won’t cause dirty in the box.
3. Easy to carry; convenient transportation.
4. Comes with a smart braking system.
5. The keyboard is very easy to operate, like a laptop.

Description



30M/40M portable pipeline inspection system sewer camera with meter counter and detector

Drain-inspection-Camera-6

Specification

Camera head14mm/23mm/38mm camera head
Meter counteravailable
Text inputavailable
Cable diameterφ5.2mm/6.8mm push rod
Cable length option20m/30m/40m
Cable reelrotatable
Monitor size7” LCD color monitor, with image rotate button
Camera head material

Stainless steel camera head, IP68 waterproof level, Sapphire glass lens cover, 12 high light white LEDs

Recoding functionavailable
Batteryrechargeable, work lasts up to 6 hours

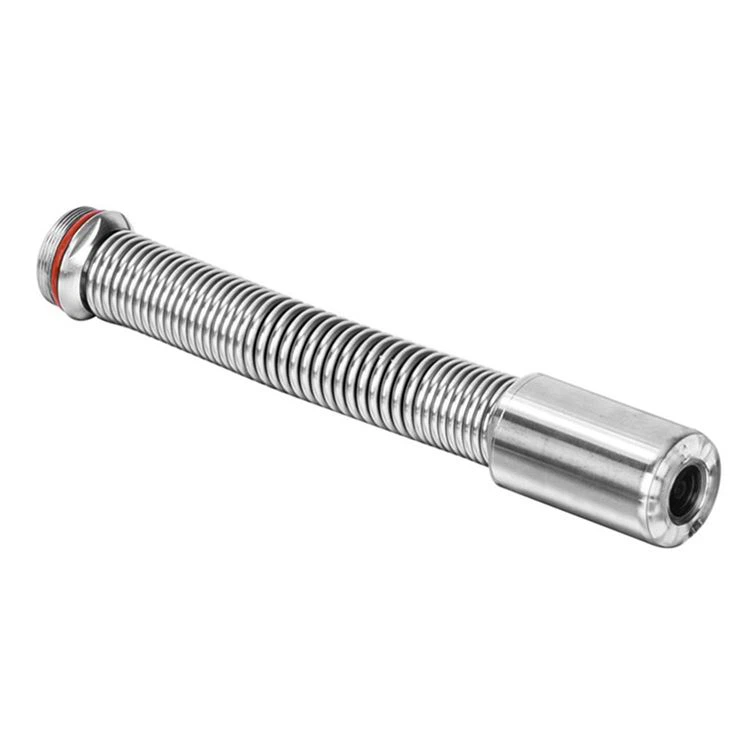

Main Part 1: 23mm camera head

Drain-inspection-Camera-24

* Camera Size: Φ23mm×45mmimage

* Camera Total Length: 120mm(short spring camera head)/250mm(long spring camera head)

* Sensor: 1/3" Sony, 480 TV-Line

* Pixel: 752H * 582V

* View Angle: 120°

* Transmitter: 512hz built-in(selectable)

Main Part 2: Cable Wheel

Drain-inspection-Camera-25

* 20/30/40M fiberglass rod cable with on-screen distance counter

* Dia. of push cable: 5.2mm/6.8mm

* Material of cable: Fiberglass covered by PP

* Operation: Mounted and rotatable in the case

Main Part 3: 7-inch LCD Monitor

Drain-inspection-Camera-26

* Screen: 7-inch 16:9 Super bright HD color LCD screen

* Resolution: 800x480 RGB

* Mirror and Flip: support image mirror, and flip

* Video Resolution: 720*576 25fps Max.

* Video Encoding: H.264

* Photograph: 720*480/720*576

* Audio Recording: local sound record

* Output: TV and Audio output

* External memory: support SD memory card up to 32GB

Camera details

Drain-inspection-Camera-21Drain-inspection-Camera-22

Parts for a kit


Factory display

Drain-inspection-Camera-23
