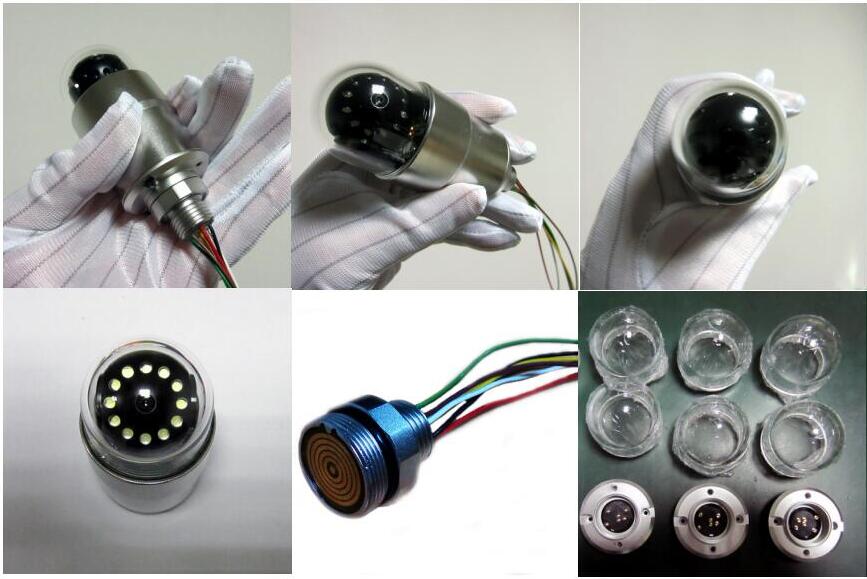

Micro Pan Tilt Underwater HD Video Analog CCTV Inspection Camera

Image sensor

1/3"SONY EXview HAD COMS

Resolution

2.0 megixel

Video format

PAL(Default)/ NTSC(Optional)

S/N ratio

>52dB(Min)/ (AGC Off)

Video output

1.0Vp‐p composite video signal at 75 ohms

OPTICAL

Lens

6.0mm Cone Lens(Default) / F2.0

Angles of view

Approx. 44°(D)& 34°(H) in Air

Scanning radius(visibility)

Approx. 5000mm underwater (Light Max)

Testing Condition: Underwater Visibility > 5m

Operating radius(optimal)

Approx.40mm~8000mm(Recommended) underwater

Minimum object distance

Approx.40mm(Underwater)

NOTE

The viewing distance is mainly affected by the factor of underwater visibility, so the focal point may be change.

Optical dome

32X HD Optical Dome(glass)

Focus

Electric focusing(by key)

ELECTRICAL

Camera power supply

12Vdc~16Vdc(+10%)/1500mA(Please match right control board according to selected transmission media and control distance)

Power consumption

9W(Max)

Integrated auxiliary lighting

6pcs ultra bright(Approx60LM/ pcs) white LED's (50 000 hours lifetime) , adjustable(Level 10)
