1080P AHD Underwater Camera 100m For Sea Underwater Inspection
1.Pan Operation [Step(Short press) / Multistep(Long press)]/ Reversing
2.Tilt Operation [Step(Short press) / Multistep(Long press)]
3.One‐Push Autoscan Activated/ Off
4.Various Velocity Setting/ Dynamic Switching
5.Various Step Setting/ Dynamic Switching
6.Light Adjustment(Level 10)
7.Save mode
Description
Micro HD Pan Til Dome camera
What's including ?

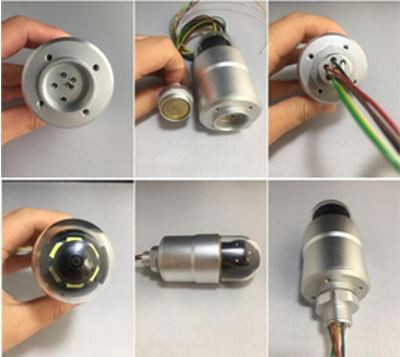

1.Underwater Pan& Tilt CCTV Inspection Camera GLF-UDC-MH360
2. Evaluation Control Board(GC01KK10default)3. Dedicated Slip Connector with Lead Wires(PTFE UL1332-6 AWG Cable: Approx 300mm)
Specificatio
| Image sensor | 1/3"SONY EXview HAD COMS |
| Resolution | 1.3 megixel |
| Video format | PAL(Default)/ NTSC(Optional) |
| S/N ratio | >52dB(Min)/ (AGC Off) |
| Video output | 1.0Vp‐p composite video signal at 75 ohms |
| OPTICAL | |
| Lens | 6.0mm Cone Lens(Default) / F2.0 |
| Angles of view | Approx. 44°(D)& 34°(H) in Air |
| Scanning radius(visibility) |
Approx. 5000mm underwater (Light Max)Testing Condition: Underwater Visibility > 5m |
| Operating radius(optimal) | Approx.40mm~8000mm(Recommended) underwater |
| Minimum object distance | Approx.40mm(Underwater) |
| NOTE | The viewing distance is mainly affected by the factor of underwater visibility, so the focal point may be change. |
| Optical dome | 32X HD Optical Dome(glass) |
| Focus |
Electric focusing(by key) |
