Waterproof 50bars Dual View Rotation Camera

Borehole inspection cameras are powerful tools for examining the conditions of underground boreholes. These cameras have been developed in response to the need for accurate and detailed information about the subsurface conditions. Boreholes are typically used for a number of purposes, including geological exploration, well drilling, geothermal energy, and mine exploration.

Why We Choose Borehole Inspection Cameras?

Borehole inspection cameras are becoming an increasingly popular tool in the exploration and drilling industry, as they provide a cost-effective and efficient way to gather vital information from underground boreholes.

1. Cost-Effective: Borehole inspection cameras eliminate the need for expensive drilling equipment and reduce the amount of time required for inspection. This results in significant cost savings for businesses in various industries.

2. Accurate Data Collection: The use of borehole inspection cameras ensures accurate data collection from underground boreholes. The cameras can provide high-quality images of the borehole walls and the geological formations, allowing geologists and scientists to analyze the data and make informed decisions.

3. Improved Efficiency: Borehole inspection cameras are designed to operate in different borehole sizes and types, making the process of inspection efficient and less time-consuming. The cameras can also rotate 360 degrees, providing a complete view of the borehole.

4. Easy to Use: Borehole inspection cameras are easy to operate, making them accessible to non-technical personnel. With the use of a remote control, the camera can be maneuvered to capture images or video footage of the borehole.

5. Non-Invasive: Unlike traditional drilling methods, borehole inspection cameras are non-invasive, reducing the impact on the environment and minimizing disruption to the surrounding areas.

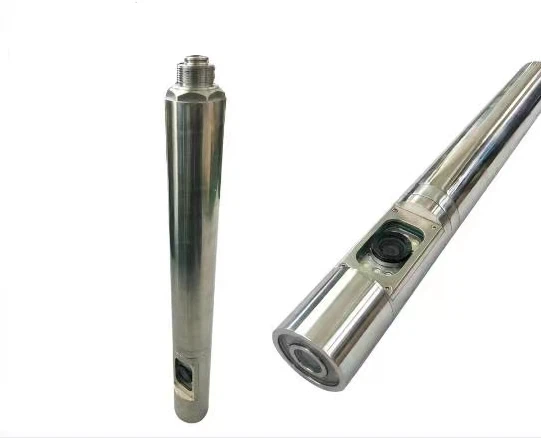

Camera Head

• Φ63mm L570mm Stainless steel casing

• Waterproof IP68 Operating depth 50 bars (725 PSI)

• Dual Camera Down & Side viewing

• Pan 360° rotate endless

• View angle 120°

• Sensor resolution PAL 720H×576V NTSC 720H×480V

• Horizontal resolution 700 TVL

• 6 pcs high light LED (down view)

• 6pcs high light LED (side view)

• Camera weight 6KG

 DVR Control Unit

• 10" industrial color monitor

• Display model 4:3

• Resolution 1024*768

• Menu language 9 languages optional

• Video input option: Borehole Camera or Pan & Tilt Camera

• Winch operating knob（adjusting speed, cable up and down, brake）

• Camera rotation control button (clockwise and counterclockwise)

• Down and side camera select button and LED brightness control button

• HD DVR Audio/Video recording & playback

• Video storage Medium: Built in 128GB SSD or USB device

• On-screen depth encoder, temperature and compass





Cable Reel

• Winding speed：0~20m/min

• Cable speed adjustable

• Φ10mm twisted pair cable (100m-500m option)

• Power supply AC 110/AC230V, DC12~24V

• On screen depth encoder

• Automatically coiling and uncoiling function（Optional)









Standard Skid



* Adjustable diameter

Borehole Inspection Cameras are a crucial tool used in a variety of applications. These specialized cameras are designed to provide high-quality imaging of boreholes and wells, which are vertical or angled tunnels drilled into the ground or rock for mining, oil and gas exploration, water well drilling, and geotechnical assessments. Borehole inspection cameras are used by professionals in a wide-range of industries to gather valuable information about the subsurface environment, monitor well and borehole conditions, and evaluate potential risks.

1. Mining

One prominent application of borehole inspection cameras is within the mining industry. Mining companies use these cameras to inspect boreholes for safety, quality control, and exploration purposes. Borehole inspection cameras are commonly used to inspect underground mine workings and ore bodies, to determine the location of mineral deposits, and the structural stability of the surrounding rock formations.

2. Oil and Gas Exploration

Borehole inspection cameras are also widely used in the exploration of oil and gas reserves. These cameras are used to inspect and evaluate the conditions of the boreholes drilled into subsurface oil and gas formations. Information is collected about the properties of the formations, such as porosity, permeability, and pressure, which enables exploration companies to assess the feasibility of the reserve.

3. Water Well Drilling

Borehole inspection cameras are essential in water well drilling. These cameras are used to determine the condition of existing wells and boreholes and to identify potential areas for the drilling of new wells. Borehole cameras can examine the borehole casing, screen, and formations to identify any issues that may impact the well’s yield.

4. Geotechnical Assessments

Borehole inspection cameras are also used in geotechnical assessments. Civil engineers use these cameras to investigate the subsurface structure of earth materials and rock formations. The information gathered by borehole cameras helps engineers make informed decisions about building foundations, drainage systems, and other structures.

In conclusion, the applications of borehole inspection cameras are numerous and varied. These instruments are commonly used across multiple industries to gather valuable information about subsurface rock and soil formations. They are vital to the success of many industries, including mining, oil and gas exploration, water well drilling, and geotechnical assessments. Borehole inspection cameras provide engineers and other professionals with the information they need to make informed decisions and ensure that projects are completed safely and effectively.
