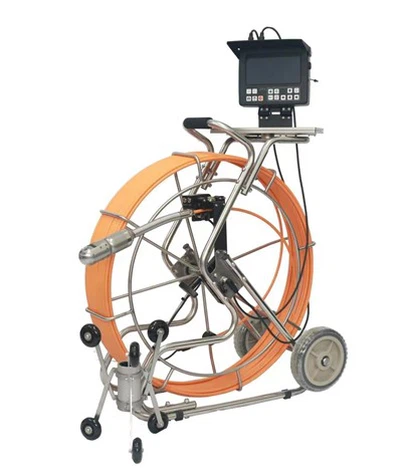

Sewer Drain Pan Tilt Pipe Inspection Camera

When it comes to looking inside pipes, ducts, tanks, or other narrow spaces, traditional visual inspection methods may not be sufficient, safe, or practical. Fortunately, pipe cameras, also known as sewer cameras, drain cameras, or borescopes, offer a convenient and flexible solution to such challenges. By using a combination of optical and electronic technologies, pipe cameras can capture high-quality images or videos of the interior of a pipe, wirelessly or via cables, regardless of the orientation, length, or angle of the pipe.

Why We Choose Pipe Cameras?

A pipe camera, also known as an inspection camera, is a tool used to inspect the interior of pipes and other pipelines. It is a small camera connected to a flexible tube that can be maneuvered through pipes to capture live video footage of the pipe's interior. Pipe cameras have several advantages that make them an essential tool for any professional plumber or pipeline worker.

One of the most significant advantages of a pipe camera is that it allows for quick and accurate inspections of pipes. Traditional inspections typically involve draining the pipes of liquid, dismantling the pipe system, and visually inspecting the pipes for damage or blockages. This process can be time-consuming and expensive. With a pipe camera, inspections can be done in real-time, allowing for more efficient and cost-effective solutions to be implemented.

Another advantage of a pipe camera is that it reduces the need for excavation. In many cases, pipes can be buried underground, and traditional inspections would require excavation to access the pipes. With a pipe camera, the inspection process can be completed without disturbing the ground, reducing the cost of repairs and minimizing damage to surrounding structures. This feature makes a pipe camera especially useful when dealing with pipes in sensitive areas such as near buildings or landscapes that can be heavily impacted by excavation.

Pipe cameras are also beneficial for identifying and locating specific problems within a pipe system. The camera can be used to identify blockages, leaks, cracks, and other issues that may be causing problems within the system. It can also be used to pinpoint the exact location of the issue, making repairs more efficient and accurate.

In addition to these benefits, pipe cameras are also easy to use and require minimal training to operate. They are a portable and compact tool that can be used in various settings and allow for real-time reporting and documentation, improving communication between workers and clients.

50mm Pan Tilt Rotation Camera Head

* Camera size 50mm x 154mm, sensor 1/3" CMOS ,1.3MP pixel

* View range 120°

* Waterproof IP68 up to 10 bar

* Rotation: Pan 360°, Tilt 180°

* Lens position automatic reset

* Slip coupling for rotation axle

* 6pcs high light LED lighting adjustable

* Lens window sapphire glass

* Detachable with pins type connection to cable reel

* Built-in 512Hz transmitter optional



8" DVR Control Unit

* Audio/video recording & snapshot function

* USB port to connect storage device ( 16G USB flash disk)

* LED brightness adjustable

* On / off microphone to record audio files

* Up, down, left, right botton to control camera rotation

* USB wireless Keyboard real time typewriting

* 7000mA rechargeable Li-ion Battery Pack,support unit working about 4-5hours

* Language: English/Chinese/French/Spanish/Polish





Cable Reel

* Fiberglass push rod cable

* Cable diameter ø9mm

* Cable length from 60m-150m option

* Reel size 70 x 28 x 84cm

* Digital meter counter









Standard Skid

* Plastic & nylon

* Min Dia: 85mm

* Max Dia: 220mm



Stainless Steel Roller Skid

* Stainless steel & nylon

* Size adjustable

* Min Dia. 280mm

   Max Dia.450mm

   (optional)

Pipe cameras, also called inspection cameras, are tools that allow users to visually examine the inside of pipes, ducts, and other confined spaces. These cameras typically consist of a flexible probe with a camera head and a cable or wireless transmitter that connects to a display or recording device. Pipe cameras can vary in size, resolution, illumination, durability, and features, depending on their intended use cases.

1. Plumbing and HVAC Inspections

The most common application of pipe cameras is for plumbing and HVAC (heating, ventilation, and air conditioning) inspections. Pipe cameras can reveal blockages, leaks, corrosion, debris, and other defects that may affect the performance and safety of pipes and systems. Plumbers and HVAC technicians can use pipe cameras to diagnose and fix problems without dismantling or damaging the pipes, saving time and money. For example, a pipe camera can detect a clogged drain, a cracked sewer line, or a malfunctioning air duct, and guide the technician to the precise location and extent of the issue.

2. Construction and Maintenance

Pipe cameras can also be valuable tools for construction and maintenance projects. Contractors can use pipe cameras to inspect and verify the quality and integrity of newly installed pipes or structures, such as underground pipes, tunnels, bridges, or walls. By checking for flaws, gaps, or misalignments in the early stages of construction, they can avoid costly rework, delays, or safety hazards. Moreover, pipe cameras can help maintenance crews to monitor and assess the condition of aging or critical structures, such as water mains, power plants, or industrial pipelines. By identifying and addressing potential problems proactively, they can prevent failures, downtime, or accidents.

3. Environmental and Public Health

Pipe cameras can have important implications for environmental and public health as well. For example, pipe cameras can help detect and locate hazardous waste, such as chemicals, oils, or sewage, that may leak into the soil or water. By identifying the source and extent of the contamination, authorities can take appropriate measures to contain or remediate the site, and prevent further harm to humans, animals, or ecosystems. Pipe cameras can also aid in exploring and monitoring natural resources, such as caves, wells, or aquifers, that may affect the availability and quality of water or minerals.

4. Security and Surveillance

Pipe cameras can also serve as tools for security and surveillance applications. By inserting a pipe camera into a potential hiding place or access point, security personnel can check for intruders, contraband, or suspicious activities. For instance, pipe cameras can help inspect luggage, vehicles, or cargo for illegal items at border crossings or checkpoints. Pipe cameras can also support law enforcement efforts by searching for missing persons, investigating crimes, or detecting hidden weapons or explosives. Moreover, pipe cameras can enhance the situational awareness and safety of firefighters, paramedics, or search and rescue teams, by giving them real-time visual information about the environment and obstacles they may encounter.

Pipe cameras are versatile tools that can serve many purposes, from detecting leaks to discovering hidden treasures. By providing visual access to confined spaces, pipe cameras can save time, money, and resources, and improve the quality and safety of various operations. As technology advances, the applications of pipe cameras may expand further, as new sensors, algorithms, or interfaces enable more intelligent and intuitive interactions with the environment. Whether you are a plumber, a scientist, or an explorer, a pipe camera can be a valuable assistant in your ventures.

Our Certificates & Patents

CE Certificate

QA Certificate

Invention Certificate

    Shaanxi Granfoo Intelligent Technology is a High-tech intelligent enterprise, specialized in designing, R&D, manufacturing and exporting of underwater cameras, pipe inspection cameras, underwater inspection robot ROV, underwater connectors, underwater cables, water quality monitor muti-parameter sensor, etc. Granfoo has already been recognized as a strategic partner of many OEM businesses for about 16 years. We have the highly experienced team to work on your OEM projects. Our experience and splendid service have won us good business relationships with many international buyers and suppliers. Our products are sold to many countries across the world including Europe, North America, Japan, Korea, Australia, etc.

    We welcome you to become our next reseller or agent in your country. Our underwater camera systems are also apply to aquaculture, underwater exploration, reservoirs, dams, canals and other water conservancy facilities, construction and monitoring, wells, repair of oil wells, urban water supply network and the pipeline monitoring and maintenance, underwater sports research, the entertainment industry for underwater sightseeing, underwater weapons test monitoring and measurement, military facilities, underwater surveillance, recording and exploration of scientific research results, deep-sea salvage and oilfield operations and so on.
