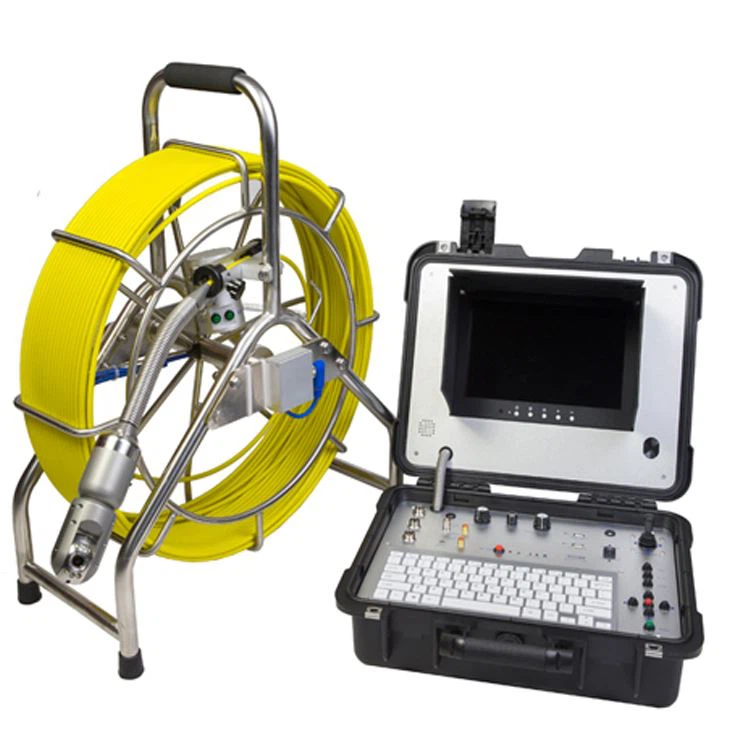

360 Degrees Rotation Pipe Inspection Camera

Pipe camera is a specialized type of video camera that is designed to be inserted into pipes and other confined spaces for inspection and monitoring purposes. It is commonly found in a variety of industries and applications, such as plumbing, HVAC, and construction, among others.

Pipe cameras are typically small, compact, and versatile, making them ideal for use in tight spaces. They consist of a camera head, which is connected to a flexible or rigid cable for easy maneuverability, and a display monitor or recorder that allows you to see and record the footage. The camera head usually has a number of LED lights to illuminate the area, and may also feature a zoom function, which can be useful for getting a closer look at specific sections of the pipe.

Why We Choose Pipe Cameras?

1. Greater Accuracy: Pipe cameras can provide highly accurate visual inspections, allowing professionals to identify the exact location of a blockage or any other issue within the pipe. This means that repairs can be carried out more precisely, reducing the need for invasive digging or excavation.

2. Saves Time: Pipe cameras eliminate the need for manual inspections, which can take a significant amount of time. The use of a camera can detect any problems quickly, allowing plumbers and maintenance workers to focus on the necessary repairs.

3. Cost-Effective: The use of a pipe camera can be highly cost-effective as it eliminates the need for large-scale excavation or replacement of pipes. In addition, the early detection of any issues can prevent more significant problems from developing, ultimately saving you money in the long run.

4. Non-Invasive: Pipe cameras are designed to fit into tight spaces and can travel through different types of pipes, which makes them highly non-invasive. This means that there is no need for excavation, and the camera can be inserted into the pipe without causing any damage.

5. Better Documentation: Pipe cameras provide highly detailed and accurate footage of the internal condition of pipes, which can be stored for later viewing and analysis. This documentation can be helpful for future inspections or to show proof of work done to clients or insurance companies.







50mm Pan Tilt Rotation Camera Head

* Camera size 50mm x 154mm, sensor 1/3" CMOS ,1.3MP pixel

* View range 120°

* Waterproof IP68 up to 10 bar

* Rotation: Pan 360°, Tilt 180°

* Lens position automatic reset

* Slip coupling for rotation axle

* 6pcs high light LED lighting adjustable

* Lens window sapphire glass

* Detachable with pins type connection to cable reel

* Built-in 512Hz transmitter optional

DVR Control Unit

* 10"HD IPS LCD Screen, 1280X720 resolution, 16:9 display model

* PT camera Joystick

* AHD DVR SYSTEM with recording 720P video

* DVR recording system with AVI video format

* USB bluetooth Keyboard real time typewriting

* USB port to connect storage device ( 16G USB flash disk)

* Built-in 8800mA rechargeable lithium battery pack

* Box size 42x33x15cm

* AC 110V-240V 1.5A power charger

* Charging time 8 hours,working time about 5 hours





Cable Reel

* Fiberglass push rod cable

* Cable diameter 9mm

* Cable length 60m to 150m optional

* Reel size L70*W28*H84cm

* Reel brake available

* Updated digital meter counter,error rate less than 1%



The pipe camera is a highly advanced camera system that is designed to be used in various industrial and commercial applications. This camera system is specifically designed to provide advanced surveillance and monitoring capabilities in areas where traditional cameras cannot be used due to their size or limitations.

The primary function of the pipe camera is to provide clear and high-quality video footage of hard-to-reach areas. The camera is mounted on a long, flexible cable that can be snaked through pipes, ducts or other narrow spaces where human access is difficult or impossible. The camera can provide a clear view of the interior of the pipe or duct, allowing operators or technicians to identify any damage or issues, which may require repairs or maintenance.

Another important function of the pipe camera is its ability to provide real-time video transmission. The camera is equipped with a powerful wireless transmitter that can broadcast video footage over long distances to a remote location. This allows operators or authorities to monitor specific areas or critical infrastructure in real-time, ensuring quick action can be taken in the event of an emergency or incident.

In addition to its video capabilities, the pipe camera also features advanced lighting technology. The camera is equipped with powerful LED lights, which can illuminate even the darkest areas of a pipe or duct. This allows the camera to provide sharp and clear images, even in conditions where there is low or no natural light.

The pipe camera also comes with various accessories that further enhance its functionality. These accessories include different types and sizes of lenses, allowing operators to adjust the camera's angle of view as needed. The camera also comes with different types of probes that can be attached to the end of the cable, allowing operators to perform specific tasks such as cleaning, testing or even retrieving objects from inside the pipe or duct.

Overall, the pipe camera is an essential tool for various industrial and commercial applications. Its advanced features and flexibility make it an ideal solution for surveillance, inspection and maintenance tasks in areas where human access is limited or impossible. As technology continues to advance, the pipe camera is likely to become even more versatile and useful in many different industries and applications.



Our Certificates & Patents

CE Certificate

QA Certificate

Invention Certificate

    Shaanxi Granfoo Intelligent Technology is a High-tech intelligent enterprise, specialized in designing, R&D, manufacturing and exporting of underwater cameras, pipe inspection cameras, underwater inspection robot ROV, underwater connectors, underwater cables, water quality monitor muti-parameter sensor, etc. Granfoo has already been recognized as a strategic partner of many OEM businesses for about 16 years. We have the highly experienced team to work on your OEM projects. Our experience and splendid service have won us good business relationships with many international buyers and suppliers. Our products are sold to many countries across the world including Europe, North America, Japan, Korea, Australia, etc.

    We welcome you to become our next reseller or agent in your country. Our underwater camera systems are also apply to aquaculture, underwater exploration, reservoirs, dams, canals and other water conservancy facilities, construction and monitoring, wells, repair of oil wells, urban water supply network and the pipeline monitoring and maintenance, underwater sports research, the entertainment industry for underwater sightseeing, underwater weapons test monitoring and measurement, military facilities, underwater surveillance, recording and exploration of scientific research results, deep-sea salvage and oilfield operations and so on.
