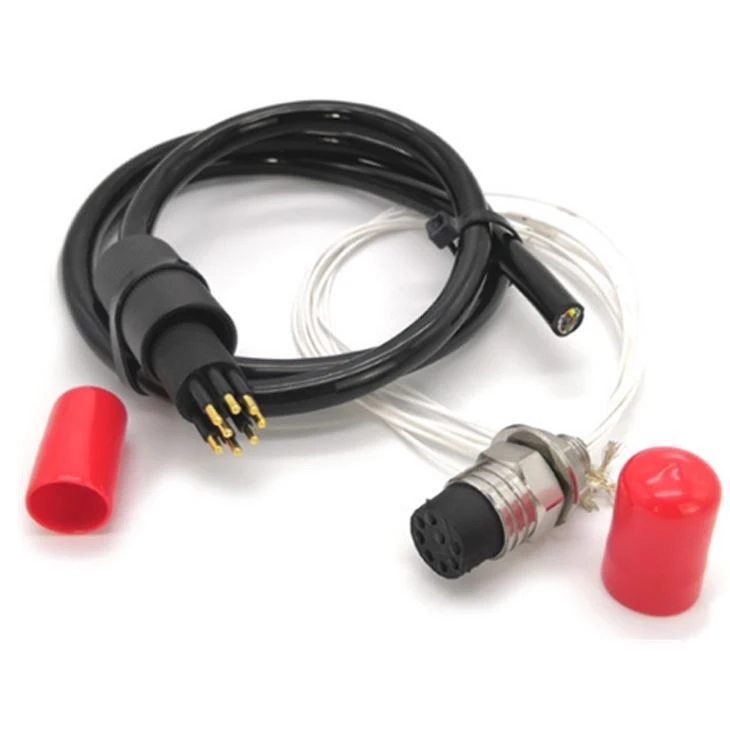

2, 3, 4, 6, 8 Pin Underwater Connector
This series of products consists of 2-8 pin miniature watertight plug-in modules, including bulkhead Connector MCBH - * - M / F;
In-Line Connector MCIL - * - M / F; and MCDLS-F Locking Sleeve customer cable can be customized package adapter
Description
Contact configuration
-
Always apply grease before mating
-
Pull out, pull straight out, do not twist around
-
Do not pull on the cable and avoid sharp bends at cable entry
-
When using a bulkhead connector, ensure that there are no angular loads
-
All kinds of connectors should not be exposed to extended periods of heat or direct sunlight
Product show
Main Specifications
| Bulkhead Body | SS316L |
| Molded Body | Neoprene |
| Contacts | Brass Gold -plated |
| O-ring | Parker 2-014 Φ12.42*1.78 |
| Locking sleeve | Belrin (POM) |
| Guid Pins | SS304 2pins Φ3.2mm ; 3/4pins Φ2.0mm |
| Thread | 7/16-20 UNF -2A |
| Depth rating | 4000m |
| Rated voltage | 300VDC |
| Rated Current | 5-10A |
| Air mate | ＞1000 |
| Underwater Mate | ＞500 |
| Operating temperature | -4-60℃ |
